Prizmatix engineers work with our customers to quickly design each system with the best LEDs,  dichroic mirrors and filters to make the ideal configuration for each individual application or requirement Whether you need specific wavelengths or broadband high power light we can supply the light source you need. Wavelength choices range from deep UV to NIR and everything in between.

Each LED is independently controlled via fast TTL (on/off),  analog inputs,  or computer control via 12 bit DAC. There is even an option for front panel dials if desired.

Output options are 3mm or 5mm light guide, SMA or FC fiber optic connectors.

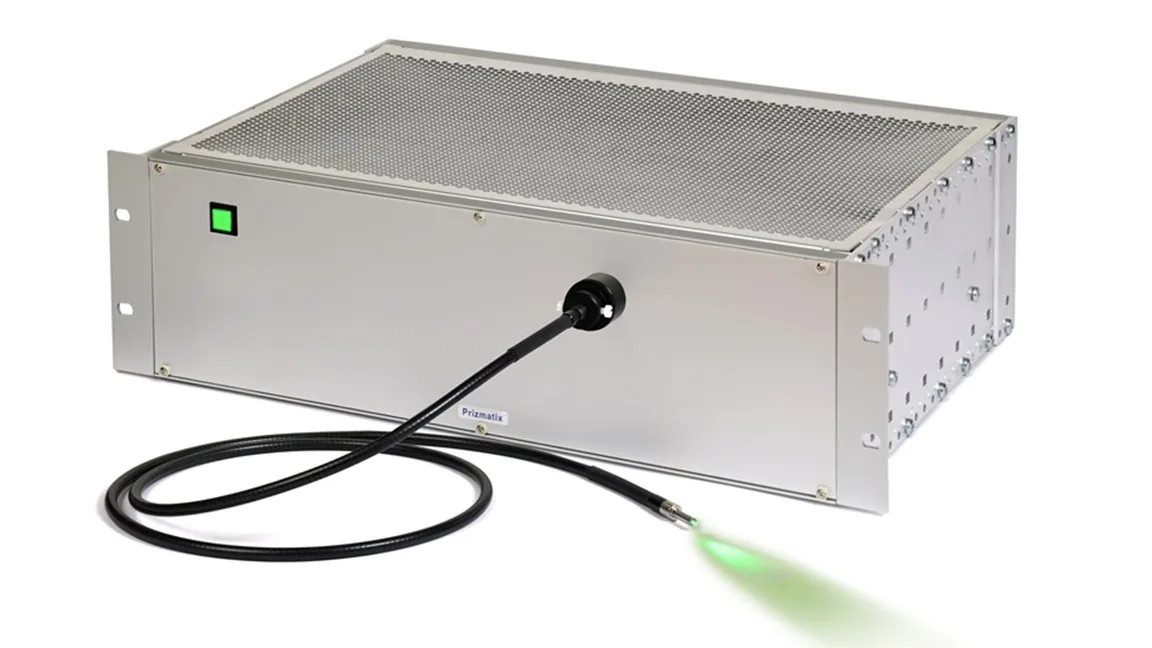

Form Factor depends on number of channels. Larger systems come in a  19 Inch rack enclosure, Smaller systems are half rack vertical. Compact OEM configurations are also available. Contact us for details.

Technical Details: Prizmatix product page

Easy Configuration Design Page: Submit Design Request

Sample Templates & Design Tool: Spectra Viewer Templates Page

Key Features

• Combines any High Power or Ultra High-Power LED available form Prizmatix

• Individual control of each channel
• Intensity control via Analog (0-5v) or Computer Interface as needed. Front panel dials also available.
• Fast TTL control via 5v BNC for each channel
• Output via Fiber optics or Light Guide.

Applications

• Spectroscopy

• Broad Band Illumination
• Multi-Spectral Imaging

Add-Ons

The following is a list of Relevant Add-Ons and accessories that may be useful when using this product:

• Liquid Light Guide
• Fiber Patch Cord
• Liquid Light Guide XYZ collimator
• Half Inch Collimator for High NA Fibers
• One Inch Collimator for High NA Fibers
